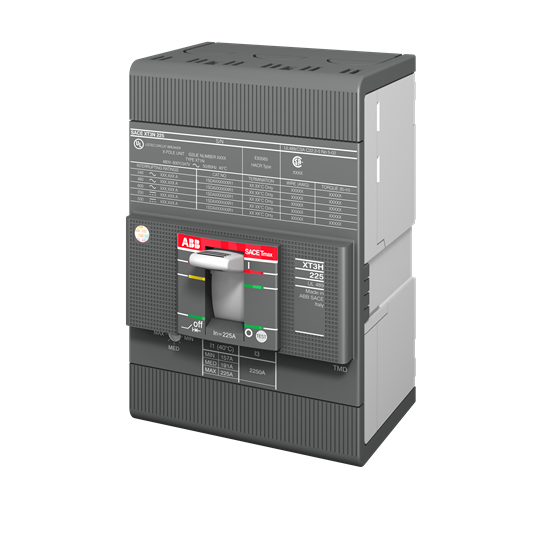

ABB 1SDA075152R1 Moulded Case Circuit Breaker 600Y/347VAC 500VDC 200A 3-P 1200-2400A Front For: XT3S

Product Code: 1SDA075152R1

  • MCCB with 200 A rated current
  • Supports 600Y/347 VAC, 500 VDC
  • Compact width of 105 mm
  • Front connection with bolt terminals
  • Complies with UL 489 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT3S
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Instantaneous Protection Adjustment Range
1200-2400A
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
MA
Frame Size Rating
XT3 (250 frme)
Rated Current (In)
200A
Rated Frequency
50Hz to 60Hz
Trip Curve
Magnetic only
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT3 (250 frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
70mm
Height
150mm
Weight
3.24kg
Width
105mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
50% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA

Documents

IPD Product Catalogue V17
