Specifications

Product Type Automatic Circuit Breaker	Brand ABB	Series SACE Tmax XT
Application Power Distribution

AC Power Loss Per Pole at In 5.8 W	Long Time Overload Protection Adjustment Range 56 to 80 A	Max. Rated Operation AC Voltage (Ue) 600 V AC
Position of Connection for Main Current Circuit Front	Type of Protection Trip Unit TM	Rated Current (In) 60 A
Rated Frequency 50 to 60 Hz	Trip Curve TMA	Terminal Type Bolt
Electrical Life 8000 cycles	Mechanical Life 25000 cycles	No. of Poles 3P

Mechanical Connection

G1 / 2" EN 837

Depth 82.5 mm	Height 130 mm	Weight 1100 g
Width 90 mm

Pollution Degree

Standards and Approvals

UL 489

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz

100 % of Icu

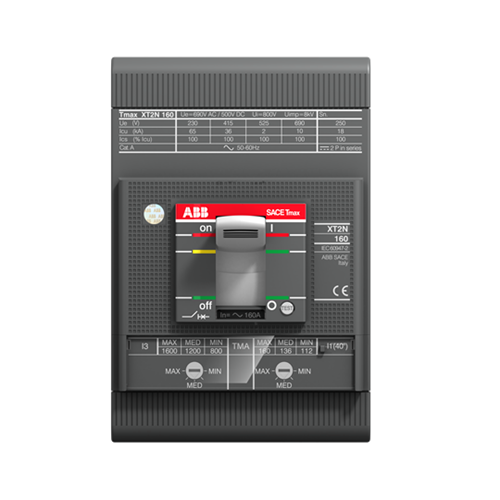

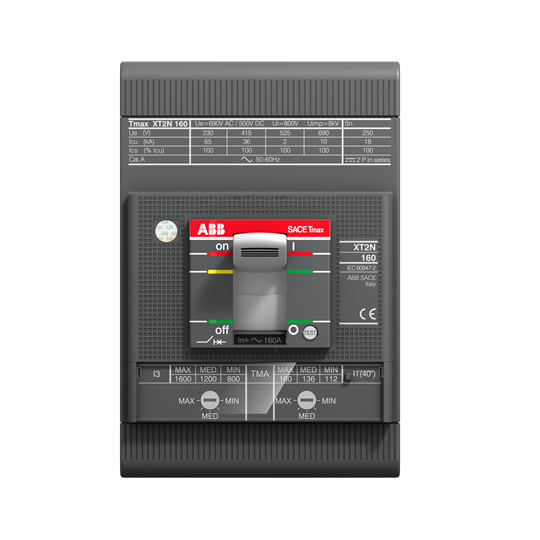

ABB 1SDA074826R1 Moulded Case Circuit Breaker 600/500VAC/VDC 80A 3-P TMA 400-800A Front
