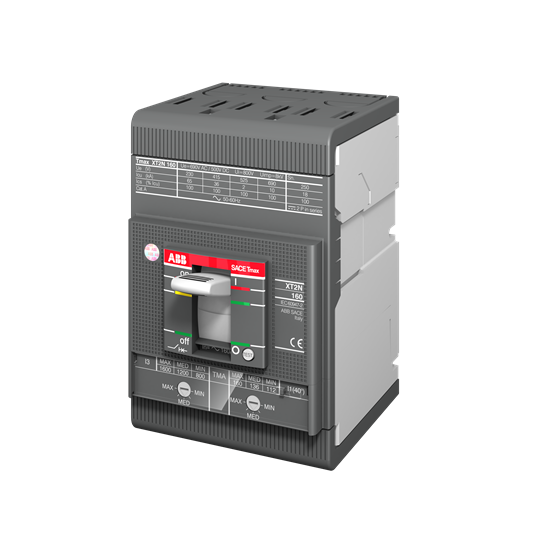

ABB 1SDA074742R1 Moulded Case Circuit Breaker 600/500VAC/VDC 80A 3-P TMA 400-800A Front For: XT2N

Product Code: 1SDA074742R1

  • Rated for 80 A, 600/500 VAC/VDC
  • Thermal magnetic (TM) release type
  • IP20 protection with front connection
  • UL 489 approved for safety standards
  • Compatible with XT2N systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
5.8W
Long Time Overload Protection Adjustment Range
56 to 80 A
Max. Rated Operation AC Voltage (Ue)
600V AC
Position of Connection for Main Current Circuit
Front
Type of Protection Trip Unit
TM
Rated Current (In)
80A
Trip Curve
TMA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.1kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
UL 489
