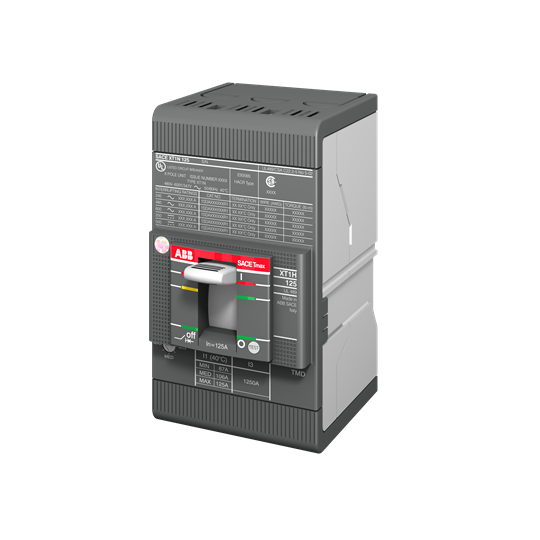

ABB 1SDA074732R1 Moulded Case Circuit Breaker 600Y/347VAC 500VDC 125A 3-P 375-1375A Front For: XT1H

Product Code: 1SDA074732R1

  • MCCB with 125 A rated current
  • Supports up to 600Y/347 VAC, 500 VDC
  • Compact design, 76.2 mm width
  • Front connection with bolt terminals
  • Meets UL 489 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
10.3W
Position of Connection for Main Current Circuit
Front
Type of Protection Trip Unit
M
Rated Current (In)
125A
Trip Curve
MA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Safety, Standards & Compliance

Standards and Approvals
UL 489

Documents

IPD Product Catalogue V17
