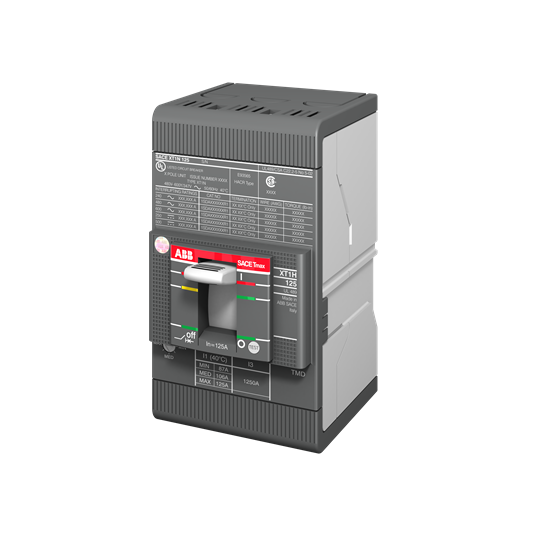

ABB 1SDA074731R1 Moulded Case Circuit Breaker 600Y/347VAC 500VDC 100A 3-P 300-1100A Front For: XT1H

Product Code: 1SDA074731R1

  • MCCB with 100A rated current
  • Supports 600Y/347 VAC & 500 VDC
  • IP20 protection, front connection
  • UL 489 standards compliant
  • Compatible with XT1H systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT1H
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
MA
Frame Size Rating
XT1 (160 frme)
Rated Current (In)
100A
Rated Frequency
50Hz to 60Hz
Trip Curve
Magnetic only
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT1 (160 frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
50% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
65kA
