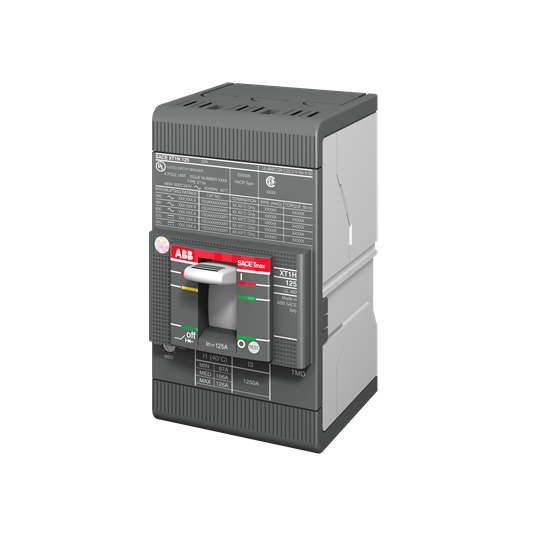

ABB 1SDA074634R1 Moulded Case Circuit Breaker 600Y/347V 15A 3-P 500A Front For: XT1N

Product Code: 1SDA074634R1

  • MCCB with 15 A rated current
  • Supports up to 600Y/347 V
  • Front connection, bolt terminals
  • 3-pole design, IP20 protection
  • UL 489 approved for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
1.1W
Position of Connection for Main Current Circuit
Front
Type of Protection Trip Unit
TM
Rated Current (In)
15A
Trip Curve
TMF
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Safety, Standards & Compliance

Standards and Approvals
UL 489

Documents

IPD Product Catalogue V17
