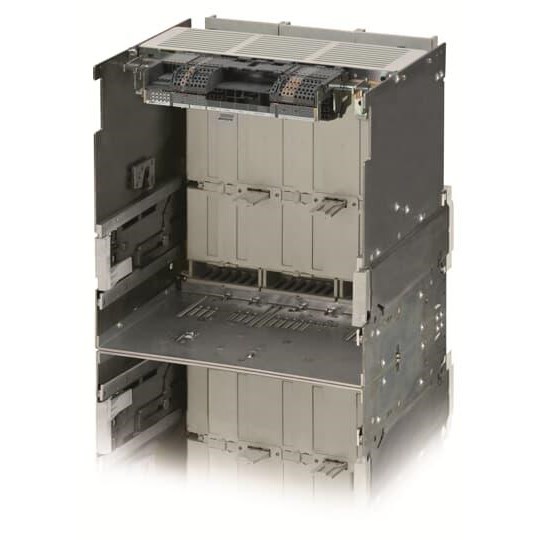

ABB 1SDA073913R1 Fixed Part Withdrawable 3-P 690VAC 3200A For: E4.2

Product Code: 1SDA073913R1

  • Accessory for E4.2 systems
  • Handles up to 3200 A current
  • Withstands 12 kV impulse voltage
  • Rated for 1000 VAC insulation
  • Meets IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Withdrawable Fixed Part
Brand
ABB
Series
SACE Emax 2
Application
Industrial

Electrical

Max. Rated Operation AC Voltage (Ue)
900V AC
No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
acc. to IEC 609472 12 kV
Rated Insulation Voltage (Ui)
AC 1000V
Rated Current (In)
3200A

Dimensions & Physical Data

Depth
383mm
Height
425mm
Weight
50kg
Width
425mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947

Documents

IPD Product Catalogue V17
