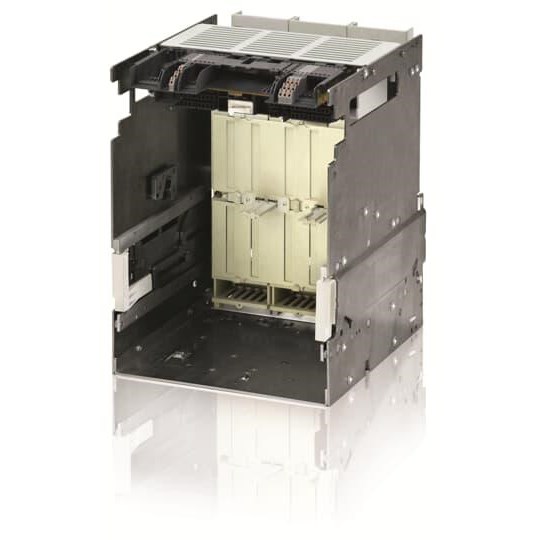

ABB 1SDA073909R1 Fixed Part Withdrawable 3-P 690VAC 2000A For: E2.2

Product Code: 1SDA073909R1

  • Accessory for E2.2 systems
  • Rated for 2000 A current
  • Withstands 12 kV impulse voltage
  • Insulation voltage rated at 1000 VAC
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fixed Part Withdrawable
Brand
ABB
Series
SACE Emax 2
Application
Industrial

Electrical

Max. Rated Operation AC Voltage (Ue)
900V AC
No. of Poles (Total)
3P
Rated Impulse Withstand Voltage (Uimp)
acc. to IEC 609472 12 kV
Rated Insulation Voltage (Ui)
AC 1000V
Rated Current (In)
2000A
Electrical Life
2000

Dimensions & Physical Data

Depth
383mm
Height
425mm
Weight
36kg
Width
317mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947
