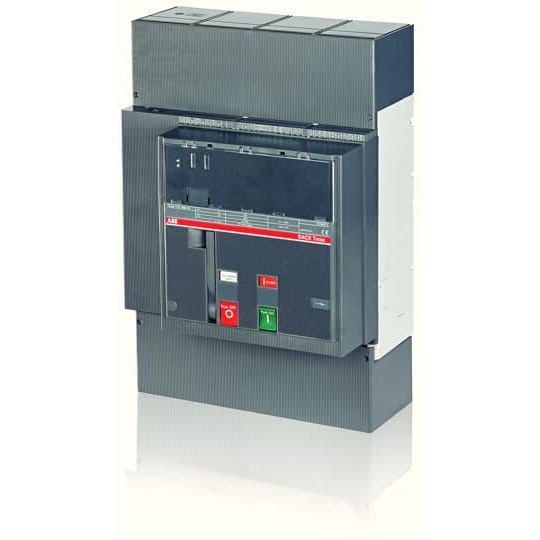

ABB 1SDA073561R1 Switch Disconnector IP20 1600A 4-P F Version 1500VDC

Product Code: 1SDA073561R1

  • 1600 A switch disconnector
  • Compact size: 280x268x154 mm
  • High protection: IP20 rated
  • Handles up to 1500 VDC voltage
  • Withstands impulse voltage of 8 kV
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax T

Electrical

Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1500V DC
Rated Operating Voltage
1500V DC
Rated Short Time Withstand Current (Icw)
19200A
Rated Uninterrupted Current (Iu)
1600A
Rated Current (In)
1600A
No. of Poles
4P

Dimensions & Physical Data

Depth
154mm
Height
268mm
Weight
12.5kg
Width
280mm

Safety, Standards & Compliance

Standards and Approvals
IEC, CE

Documents

IPD Product Catalogue V17
