Specifications

Product Type Withdrawable	Brand ABB	Series SACE Emax 2
Application Power Distribution / Power Control

AC Power Loss Per Pole at In 150W	Air Circuit Breaker (Withdrawable) Withdrawable	Integrated Communication Function Yes
Long Time Overload Protection Adjustment Range 0.4 x In-1 x In	Max. Rated Operation AC Voltage (Ue) 690V AC	No. of Poles (Total) 3
Rated Impulse Withstand Voltage (Uimp) 12kV	Rated Insulation Voltage (Ui) 1000V AC	Short-time Protection Adjustment Range 0.6 x In-10 x In
Short-time Withstand Current (Icw), 1 sec 66000A	Short-time Withstand Current (Icw), 3 sec 50000A	Type of Protection Trip Unit Ekip Touch LSIG
Frame Size Rating E2.2N	Communication Protocols IEC 61850Modbus TCPModbus RS485Profibus ProfinetDeviceNet™EtherNet/IP™	Power Loss 450W
Rated Current (In) 2000A	Rated Frequency 50Hz60Hz	Trip Curve LSIG
Electrical Life 10000	Mechanical Life 25000

Frame Size

E2.2N

Housing Material

polyester thermoset

Max. Vibration Acceleration

0.7g

Depth 383mm	Height 425mm	Weight 48kg
Width 317mm

Rated Surrounding Temperature Without Derating 55°C	Pollution Degree Level 3	Operating Temperature 25°C to 70°C
IP Rating IP20	Max. Altitude Before Derating 2000m

Standards and Approvals

IEC 609472 and EN 60947

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz 66kA	Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz 66kA	Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC 66kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC 66kA

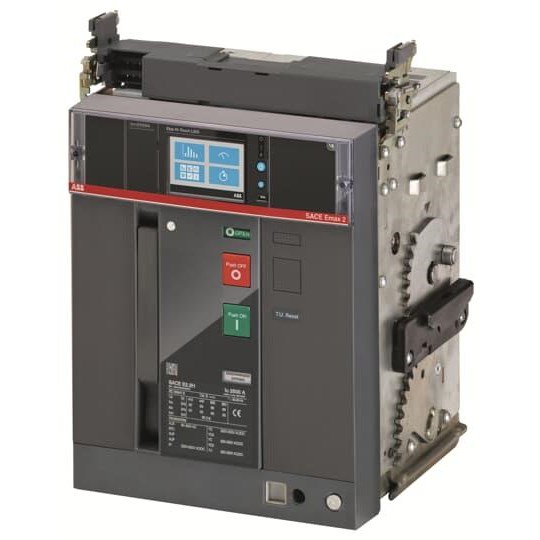

ABB 1SDA072386R1 ACB with Ekip Touch LSIG 3-P 690VAC 2000A
