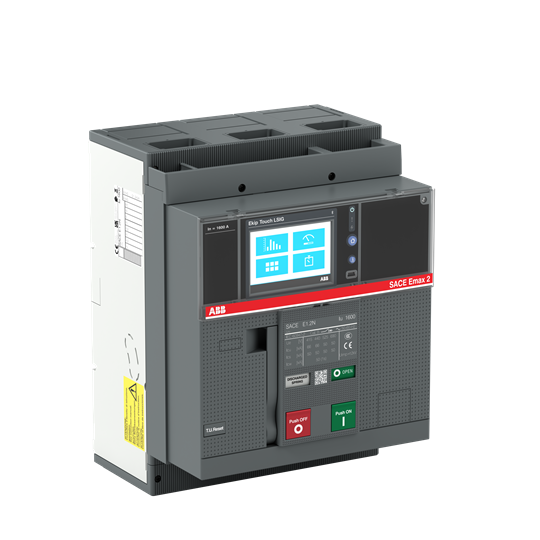

ABB 1SDA070809R1 Circuit Breaker Sace 3-P 690V 1000A 330mm

Product Code: 1SDA070809R1

  • Supports up to 1000 A current
  • Withstands 12 kV impulse voltage
  • Insulation voltage rated at 1000 V
  • Breaking capacity of 100 kA
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Air Circuit Breaker
Brand
ABB
Series
SACE Emax 2

Electrical

Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
EL
Power Loss
201 W
Rated Current (In)
1600 A
Rated Frequency
50Hz60 Hz
Trip Curve
Ekip Hi-Touch LSIG
Terminal Type
Bolt
Mechanical Life
20000 cycles
No. of Poles
3P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
183 mm
Height
296 mm
Weight
14000 g
Width
210 mm

Environmental

Pollution Degree
Level 3

Safety, Standards & Compliance

Standards and Approvals
IEC

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
50 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
66 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
50 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
50 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
50 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
50 kA
