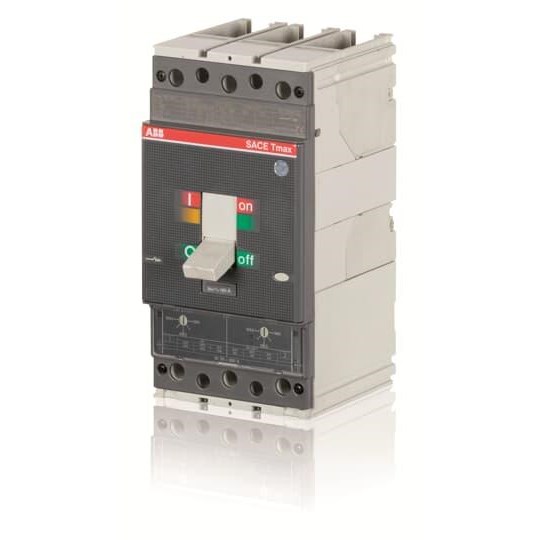

ABB 1SDA070460R1 Switch Disconnector 200A 3-P F Version 1000VDC

Product Code: 1SDA070460R1

  • Handles 200 A for robust performance
  • Compact size: 105mm W x 205mm H x 103.5mm D
  • High impulse withstand voltage of 8 kV
  • Supports up to 1000 VDC
  • Durable with a short time withstand current of 3 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax T

Electrical

Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1000V DC
Rated Operating Voltage
1000V DC
Rated Short Time Withstand Current (Icw)
3000A
Rated Uninterrupted Current (Iu)
200A
Rated Current (In)
200A
No. of Poles
3P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
2.35kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
UL, CE

Documents

IPD Product Catalogue V17
