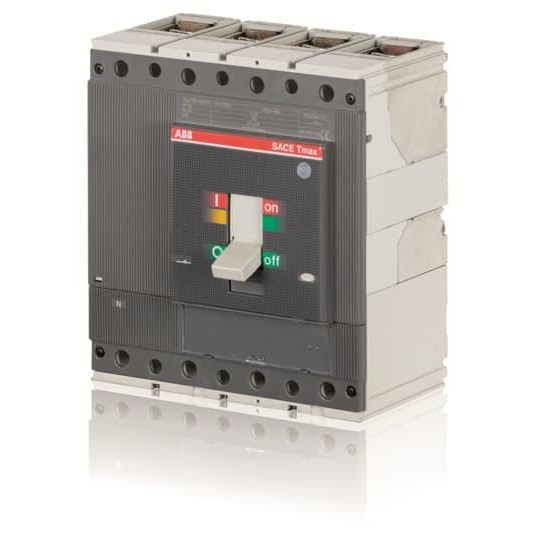

ABB 1SDA069824R1 Switch Disconnector IP20 500A 4-P 1100VDC

Product Code: 1SDA069824R1

  • Switch disconnector rated at 500 A
  • Handles up to 1100 VDC voltage
  • Compact dimensions: 186x205x103.5 mm
  • Front connection with IP20 protection
  • Supports 4 poles for versatile use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax T

Electrical

Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
1100V DC
Rated Operating Voltage
1100V DC
Rated Short Time Withstand Current (Icw)
6000A
Rated Uninterrupted Current (Iu)
500A
Power Loss
28.8W
Rated Current (In)
500A
No. of Poles
4P

Dimensions & Physical Data

Depth
103.5mm
Height
205mm
Weight
4.15kg
Width
186mm

Safety, Standards & Compliance

Standards and Approvals
IEC, CE

Documents

IPD Product Catalogue V17
