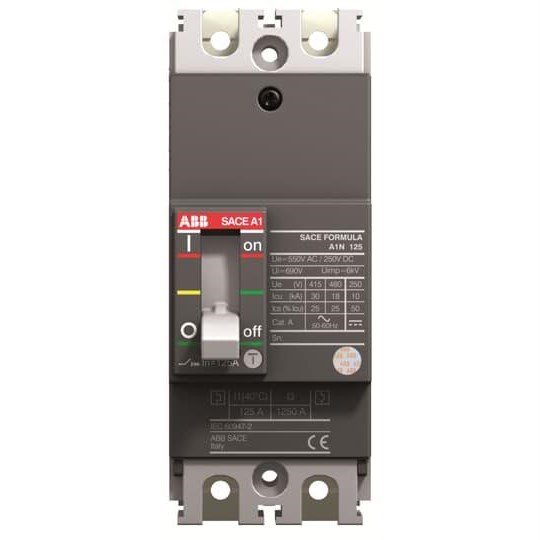

ABB 1SDA068790R1 Moulded Case Circuit Breaker 250VAC/VDC 550VAC/VDC 16A 2-P 10kA Front

Product Code: 1SDA068790R1

  • 16 A MCCB with 2 poles
  • Rated voltage: 250/550 VAC/VDC
  • Breaking capacity of 10 kA
  • Compact width at 50.8 mm
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE FORMULA

Electrical

Max. Rated Operation AC Voltage (Ue)
550V AC
Rated Insulation Voltage (Ui)
690V
Type of Protection Trip Unit
TM
Rated Current (In)
16A
Trip Curve
TMF
Terminal Type
Front
Electrical Life
1500 cycles
No. of Poles
2P

Dimensions & Physical Data

Depth
60mm
Height
130mm
Weight
0.5kg
Width
50.8mm

Safety, Standards & Compliance

Standards and Approvals
IEC

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
