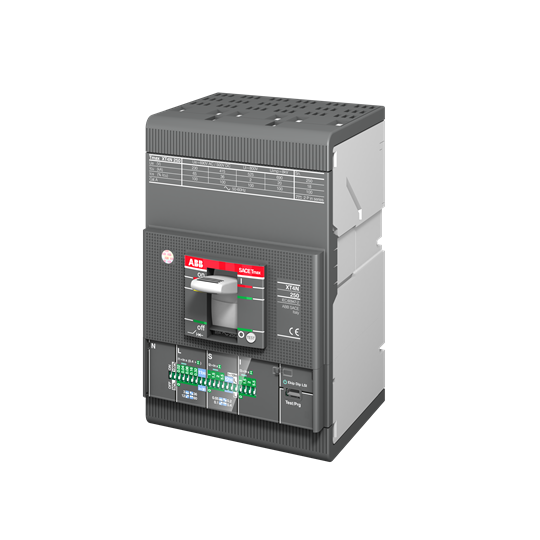

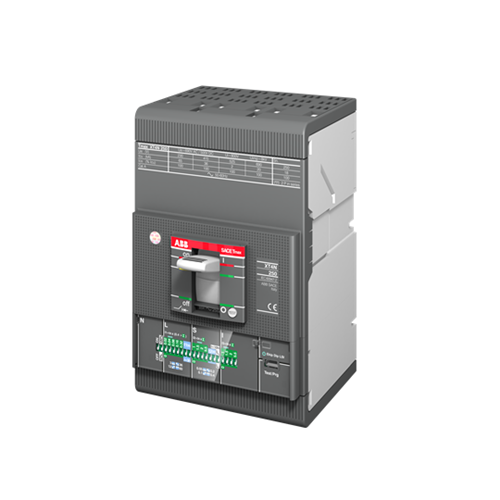

ABB 1SDA068567R1 Moulded Case Circuit Breaker 690VAC 63A 3-P 120kA Ekip Dip LSI Front For: XT4L

Product Code: 1SDA068567R1

  • MCCB with 63 A rated current
  • 120 kA breaking capacity
  • Ekip Dip LSI trip unit for precision
  • Front connection, bolt terminals
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT4L
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
Electronic
Frame Size Rating
XT4 (160 Frme)
Rated Current (In)
63A
Rated Frequency
50Hz to 60Hz
Trip Curve
Ekip Dip LSIG
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT4 (160 Frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
2.5kg
Width
105mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
