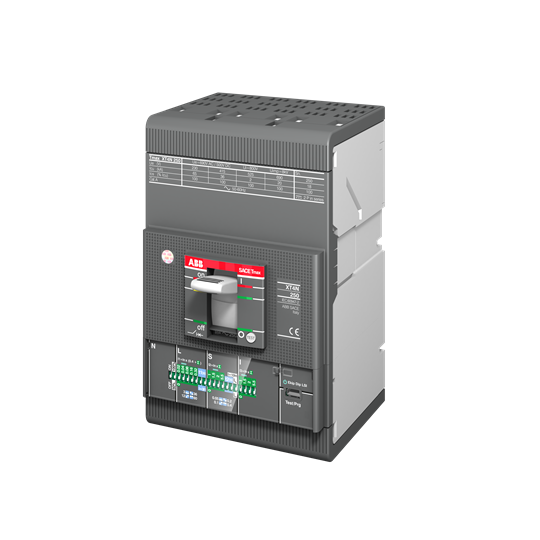

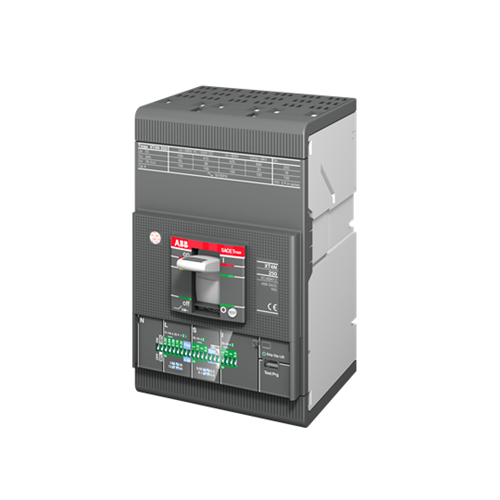

ABB 1SDA068560R1 Moulded Case Circuit Breaker 690VAC 250A 3-P 120kA Ekip Dip LSI Front For: XT4L

Product Code: 1SDA068560R1

  • Rated current of 250 A for robust performance
  • High breaking capacity of 120 kA
  • Ekip Dip LSI trip unit for precise control
  • Compact width of 105 mm saves space
  • Front connection with bolt terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
16.4W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
250A
Rated Frequency
50/60Hz
Trip Curve
Ekip I
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
2.5kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
20kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA
