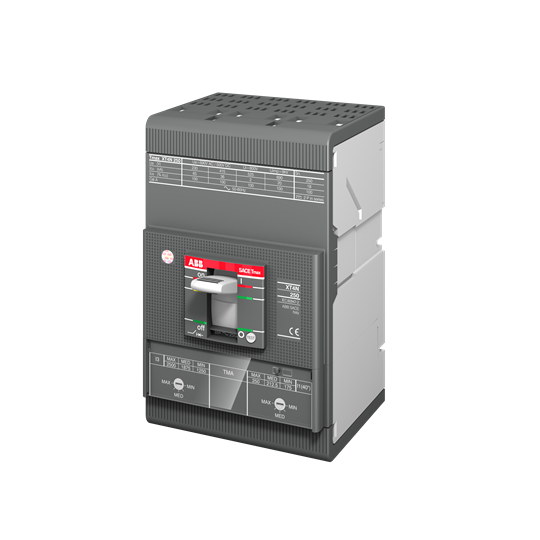

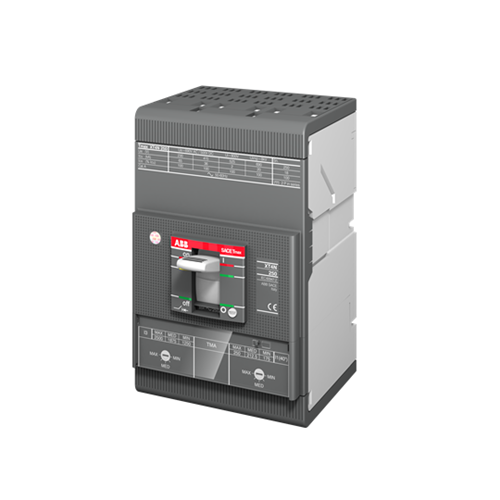

ABB 1SDA068431R1 Moulded Case Circuit Breaker 690/750VAC/VDC 10A 3-P 50kA 50-100A Front For: XT4S

Product Code: 1SDA068431R1

  • MCCB with 10A rated current
  • High breaking capacity of 50 kA
  • Rated voltage up to 690/750 VAC/VDC
  • Front connection, bolt terminal type
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
2 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
M
Rated Current (In)
10:00 AM
Rated Frequency
50/60 Hz
Trip Curve
MA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
160 mm
Weight
2500 g
Width
105 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
12 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
12 kA
