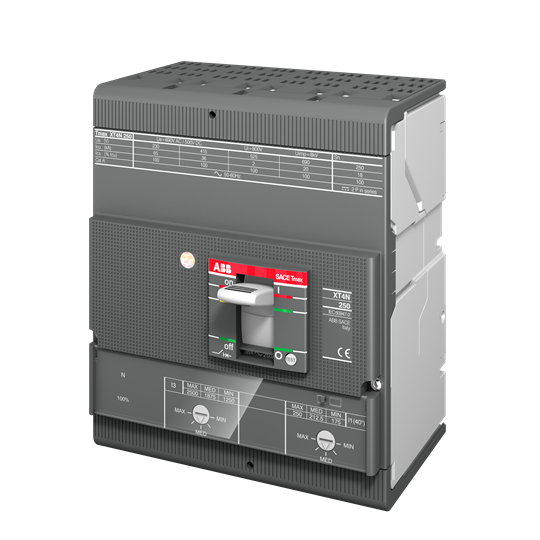

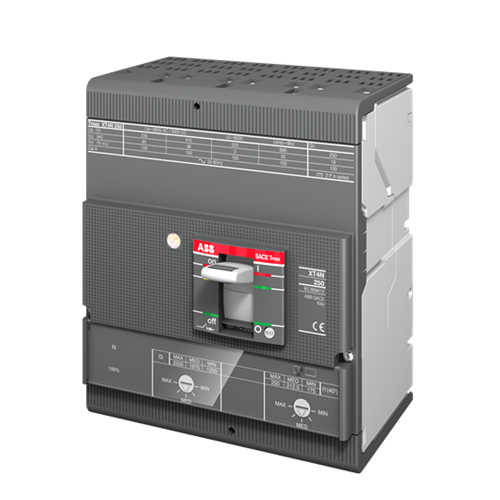

ABB 1SDA068357R1 Moulded Case Circuit Breaker 690/750VAC/VDC 200A 4-P 15kA TMA 1000-2000A Front For: XT4H

Product Code: 1SDA068357R1

  • 200 A MCCB with 4 poles
  • Rated voltage up to 690/750 VAC/VDC
  • Breaking capacity of 15 kA
  • Front connection, bolt terminals
  • IEC60947-2 compliant
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
11.88W
Long Time Overload Protection Adjustment Range
140 to 200 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Rated Current (In)
200A
Rated Frequency
50/60Hz
Trip Curve
TMA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
3.5kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
15kA
