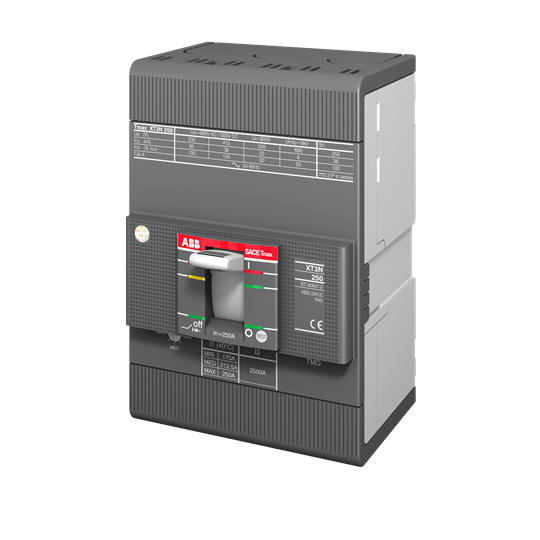

ABB 1SDA068280R1 Moulded Case Circuit Breaker 690/500VAC/VDC 125A 3-P 6kA 750-1500A Front For: XT3S

Product Code: 1SDA068280R1

  • 125 A MCCB with 3 poles and front connection
  • Rated voltage up to 690 VAC/500 VDC
  • Breaking capacity of 6 kA, IP20 protection
  • Complies with IEC60947-2 standards
  • Compact width of 105 mm, bolt terminal
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT3S
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Instantaneous Protection Adjustment Range
750-1500A
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
MA
Frame Size Rating
XT3 (250 frme)
Rated Current (In)
125A
Rated Frequency
50Hz to 60Hz
Trip Curve
Magnetic only
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT3 (250 frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
70mm
Height
150mm
Weight
3.24kg
Width
105mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
50% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
