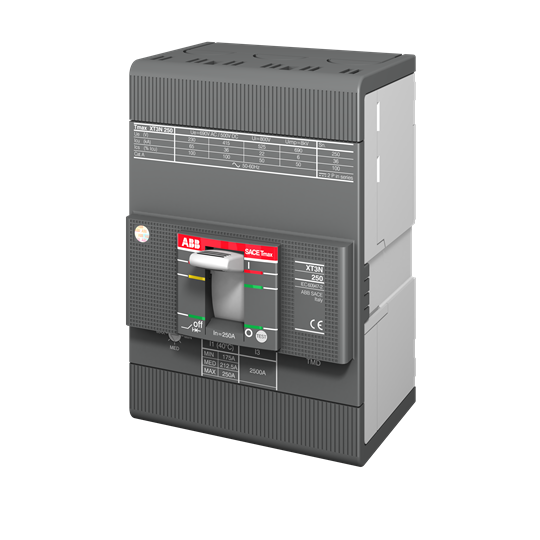

ABB 1SDA068256R1 Moulded Case Circuit Breaker 690/500VAC/VDC 200A 3-P 36kA TMG 600A Front For: XT3N

Product Code: 1SDA068256R1

  • MCCB rated at 200 A with TM release type
  • Handles up to 36 kA breaking capacity
  • Operates at 690/500 VAC/VDC, 50/60 Hz
  • IP20 protection with bolt terminal connection
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Generator Protection

Electrical

AC Power Loss Per Pole at In
13.2W
Long Time Overload Protection Adjustment Range
140 to 200 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
200A
Rated Frequency
50/60Hz
Trip Curve
TMG
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
150mm
Weight
1.7kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
3kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
5kA
