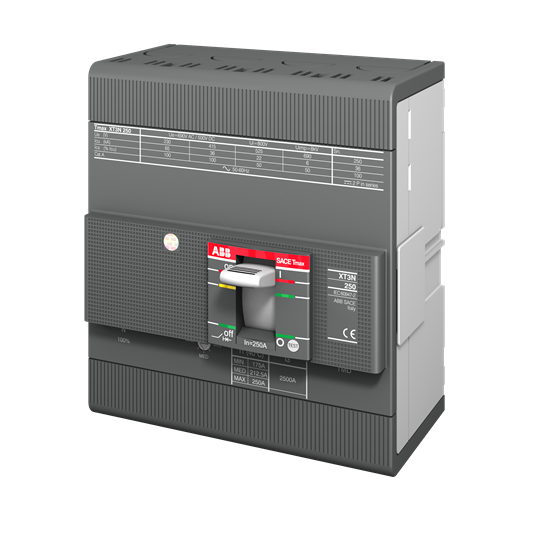

ABB 1SDA068231R1 Moulded Case Circuit Breaker 690/500VAC/VDC 200A 4-P 50kA TMD 2000A Front For: XT3S

Product Code: 1SDA068231R1

  • MCCB with 200 A rated current
  • High breaking capacity of 50 kA
  • Rated voltage up to 690 VAC/500 VDC
  • Front connection, bolt terminal type
  • Compliant with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
13.2W
Long Time Overload Protection Adjustment Range
140 to 200 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
200A
Rated Frequency
50/60Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
70mm
Height
150mm
Weight
2.1kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
3kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
6kA
