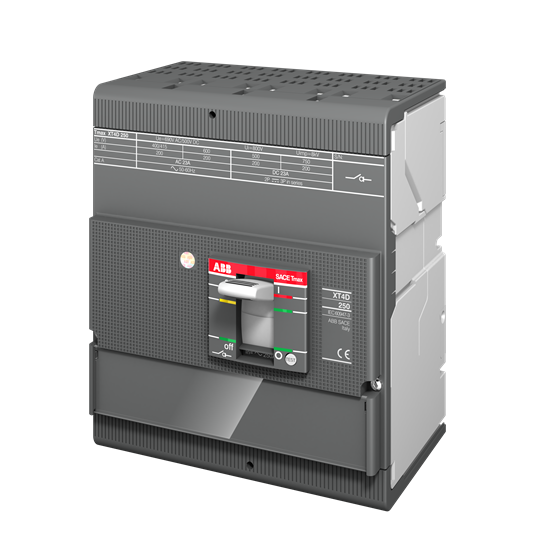

ABB 1SDA068213R1 Switch-Disconnector IP20 250A 4-P F Version 690/500VAC/DC

Product Code: 1SDA068213R1

  • 250 A switch disconnector
  • Compact size: 140x160x82.5 mm
  • IP20 protection rating
  • Handles up to 690/500 VAC/VDC
  • Bolt terminal connections
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
800V
Rated Operating Voltage
500V DC, 690V AC
Rated Short Time Withstand Current (Icw)
3600A
Rated Uninterrupted Current (Iu)
250A
Power Loss
16.4W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
2.35kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE
