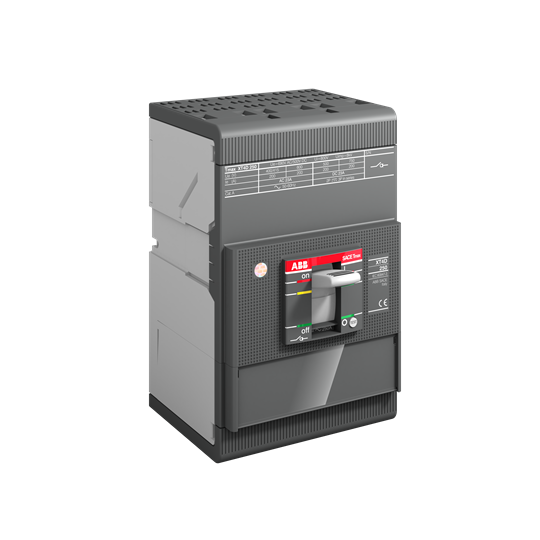

ABB 1SDA068212R1 Switch-Disconnector IP20 250A 3-P F Version 690/500VAC/DC

Product Code: 1SDA068212R1

  • Switch disconnector rated at 250 A
  • Compact size: 105mm x 160mm x 82.5mm
  • Handles voltages up to 690/500 VAC/VDC
  • IP20 protection ensures safe operation
  • Suitable for 50/60 Hz frequency systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
800V
Rated Operating Voltage
690V
Rated Short Time Withstand Current (Icw)
3600A
Rated Uninterrupted Current (Iu)
250A
Power Loss
49.2W
Rated Current (In)
250A
Rated Frequency
50/60Hz
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
2.086kg
Width
105mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CE

Documents

IPD Product Catalogue V17
