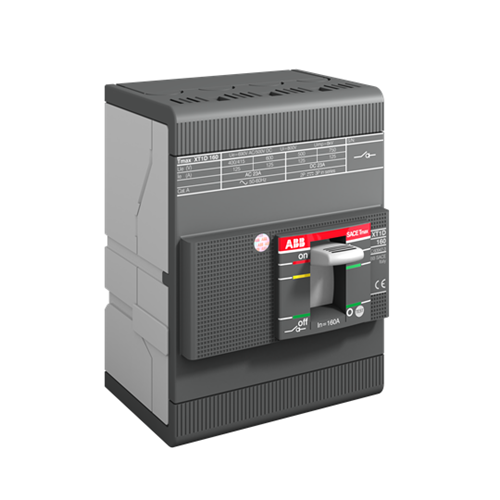

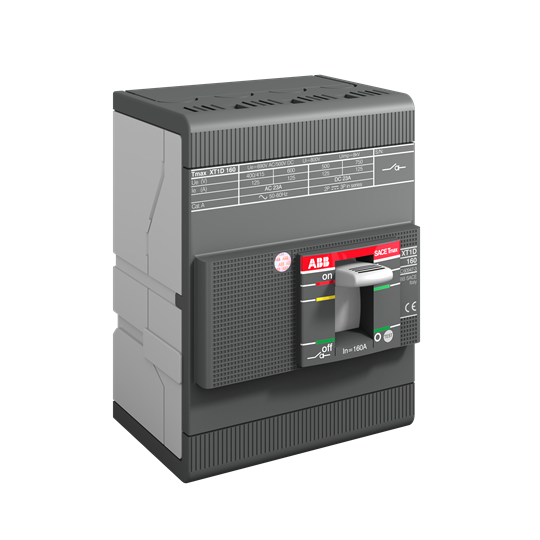

ABB 1SDA068209R1 Switch-Disconnector IP20 160A 3-P F Version 690/500VAC/DC

Product Code: 1SDA068209R1

  • Handles 160 A current with ease
  • Compact size: 101.6x130x70 mm
  • IP20 protection for safe use
  • Operates at 690/500 VAC/VDC
  • Front connection with bolt terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Switch Disconnector
Brand
ABB
Series
SACE Tmax XT

Electrical

Position of Line Terminals
Front
Rated Impulse Withstand Voltage (Uimp)
8kV
Rated Insulation Voltage (Ui)
800V
Rated Operating Voltage
500V DC, 690V AC
Rated Short Time Withstand Current (Icw)
2000A
Rated Uninterrupted Current (Iu)
160A
Power Loss
15W
Rated Current (In)
160A
Rated Frequency
50/60Hz
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.4kg
Width
101.6mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, CB, CQC, CCC, CE, EAC, UL
