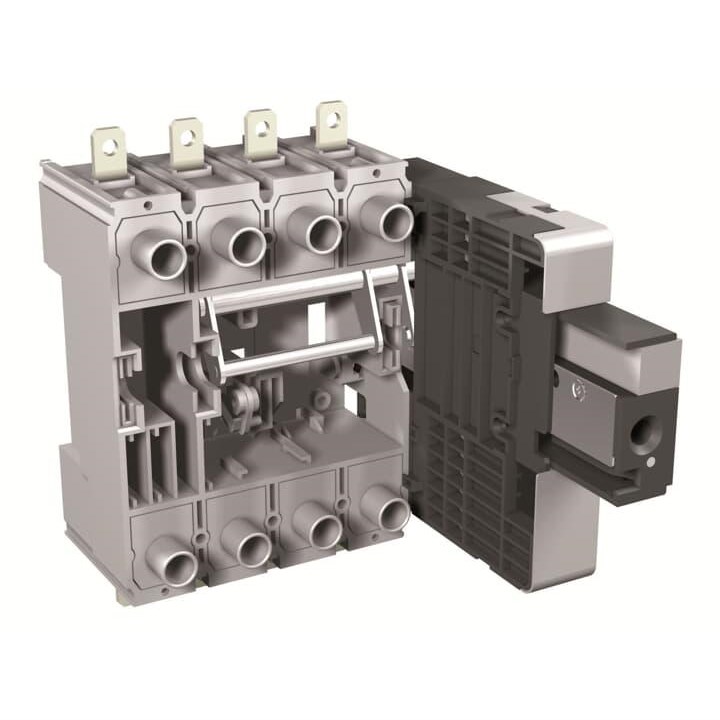

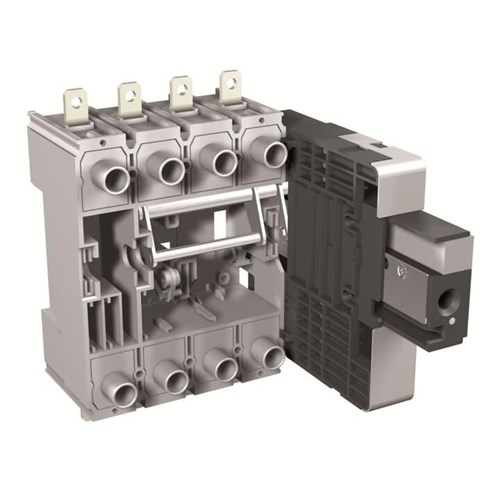

ABB 1SDA068206R1 Fixed Part Withdrawable Circuit-Breaker 4-P 690/500VAC/DC 250A Extended Front For: XT4

Product Code: 1SDA068206R1

  • Accessory with 250 A rated current
  • Withstands impulse voltage up to 8 kV
  • Insulation voltage rated at 1000 V
  • Compatible with XT4 devices
  • Meets IEC60947-2, UL 489 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fixed Part
Brand
ABB
Series
Accessories for Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Current (In)
250A
Rated Frequency
50/60Hz
Terminal Type
Withdrawable Circuit-Breakers, Front Extended
No. of Poles
4P

Dimensions & Physical Data

Weight
2.16kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, UL 489
