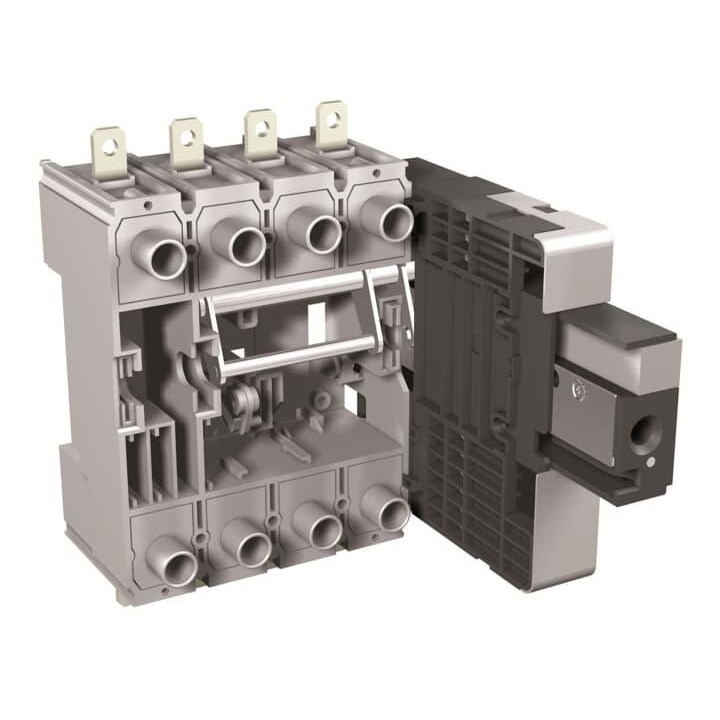

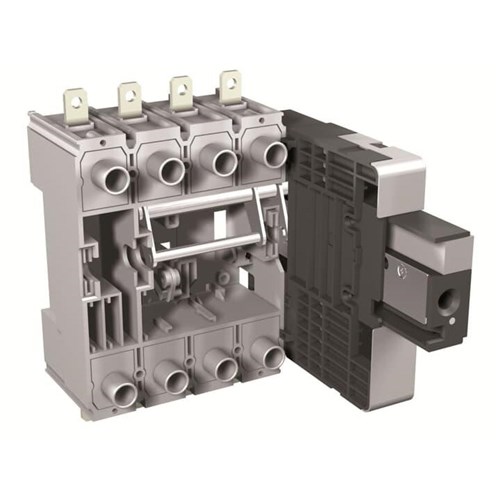

ABB 1SDA068203R1 Fixed Part Withdrawable Circuit-Breaker 4-P 690/500VAC/DC 160A Rear Flat Horizontal For: XT2

Product Code: 1SDA068203R1

  • Accessory for use with XT2
  • Handles up to 160 A current
  • Withstands 8 kV impulse voltage
  • Supports 690/500 VAC/VDC systems
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fixed Part
Brand
ABB
Series
Accessories for Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Current (In)
160A
Rated Frequency
50/60Hz
Terminal Type
Withdrawable Circuit-Breakers, Rear flat Horizontal
No. of Poles
4P

Dimensions & Physical Data

Weight
1.7kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2
