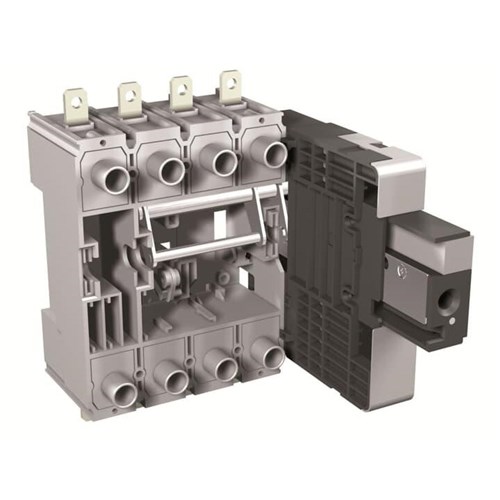

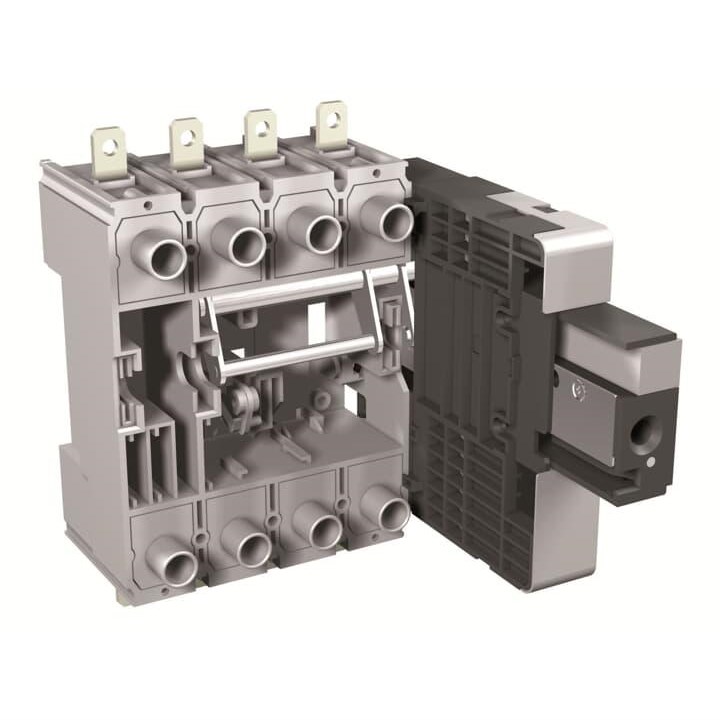

ABB 1SDA068202R1 Fixed Part Withdrawable Circuit-Breaker 4-P 690/500VAC/DC 160A Extended Front For: XT2

Product Code: 1SDA068202R1

  • Supports up to 160 A current
  • Withstands impulse voltage of 8 kV
  • Insulation voltage rated at 1000 V
  • Compatible with XT2 systems
  • Meets IEC60947-2, UL 489 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fixed Part
Brand
ABB
Series
Accessories for Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Current (In)
160A
Rated Frequency
50/60Hz
Terminal Type
Withdrawable Circuit-Breakers, Front Extended
No. of Poles
4P

Dimensions & Physical Data

Weight
1.59kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2, UL 489

Documents

IPD Product Catalogue V17
