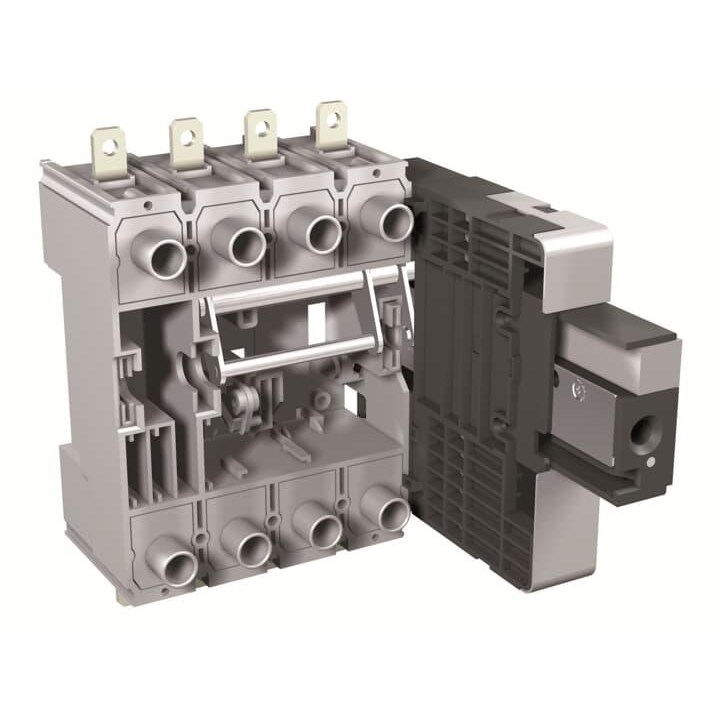

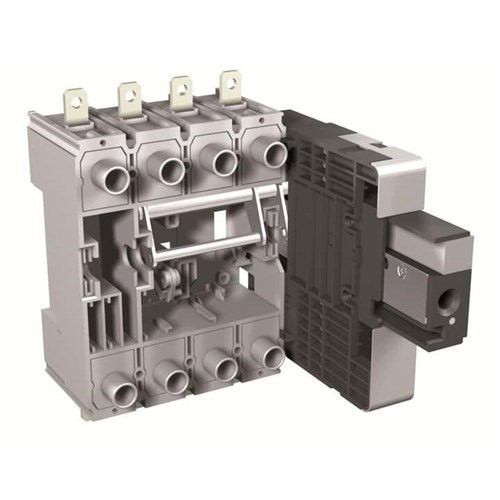

ABB 1SDA068201R1 Fixed Part Withdrawable Circuit-Breaker 3-P 690/500VAC/DC 160A Rear Flat Horizontal For: XT2

Product Code: 1SDA068201R1

  • Supports up to 160 A current
  • Withstands impulse voltage of 8 kV
  • Insulation voltage rated at 1000 V
  • Compatible with XT2 devices
  • Meets IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Fixed Part
Brand
ABB
Series
Accessories for Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Current (In)
160A
Rated Frequency
50/60Hz
Terminal Type
Withdrawable Circuit-Breakers, Rear flat Horizontal
No. of Poles
3P

Dimensions & Physical Data

Weight
1.44kg

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2
