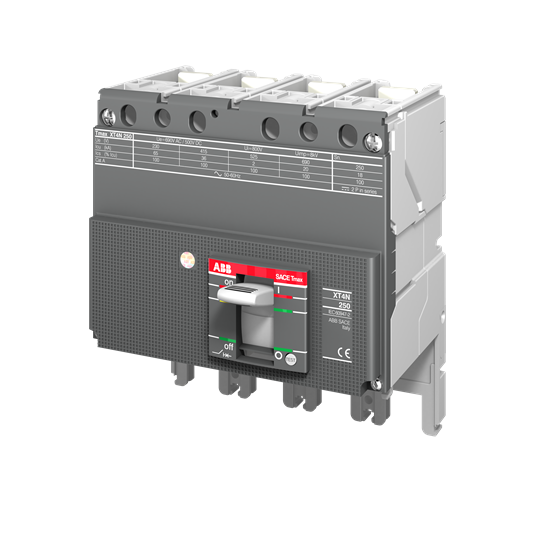

ABB 1SDA068178R1 Moulded Case Circuit Breaker 4-P 690/500VAC/DC 250A Front

Product Code: 1SDA068178R1

  • Supports up to 250 A current
  • Withstands impulse voltage of 8 kV
  • Rated for 1000 V insulation
  • Front connection with IP20 protection
  • Compact size: 140x160x82.5 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Breaking Part
Brand
ABB
Series
SACE Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Frequency
50/60Hz
Terminal Type
Front
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
2.65kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA
