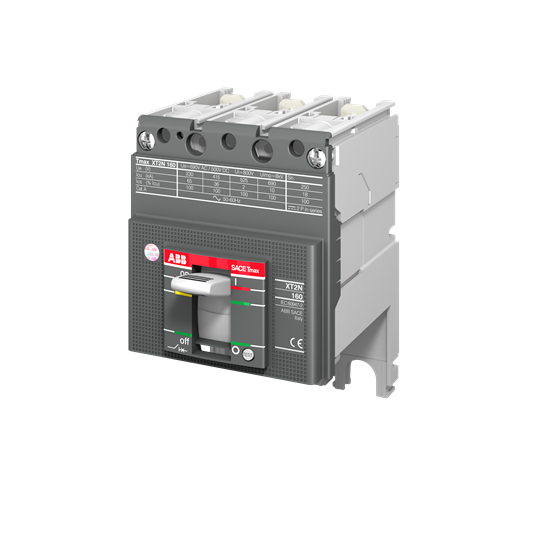

ABB 1SDA068167R1 Moulded Case Circuit Breaker 3-P 690/500VAC/DC 160A Front

Product Code: 1SDA068167R1

  • Supports 160A current for robust performance
  • Withstands impulse voltage up to 8kV
  • Rated for both AC and DC applications
  • Front connection design for easy installation
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Breaking Part
Brand
ABB
Series
SACE Tmax XT

Electrical

Max. Rated Operation AC Voltage (Ue)
690V AC
Rated Insulation Voltage (Ui)
1000V
Rated Frequency
50/60Hz
Terminal Type
Front
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
0.82kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
150kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
20kA
