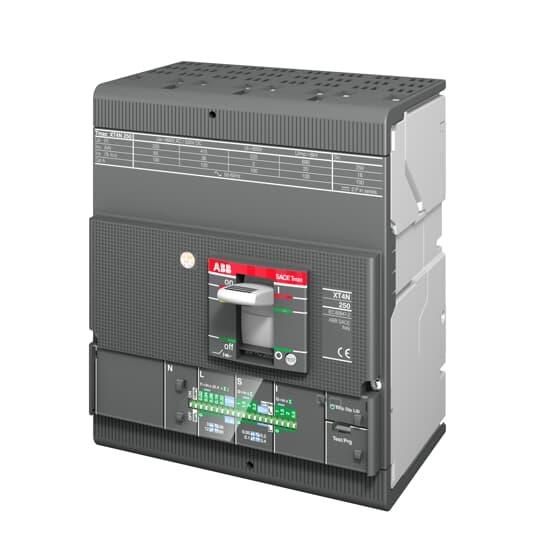

ABB 1SDA068158R1 Moulded Case Circuit Breaker 690VAC/VDC 40A 4-P 36kA Ekip Dip LSI Front For: XT4N

Product Code: 1SDA068158R1

  • MCCB with 40 A rated current
  • Withstands up to 8 kV impulse voltage
  • Ekip Dip LSI trip unit included
  • Breaking capacity of 36 kA
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
0.6W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V AC
Type of Protection Trip Unit
EL
Rated Current (In)
40A
Rated Frequency
50/60Hz
Trip Curve
Ekip C Dip LSIG
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
3.5kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA
