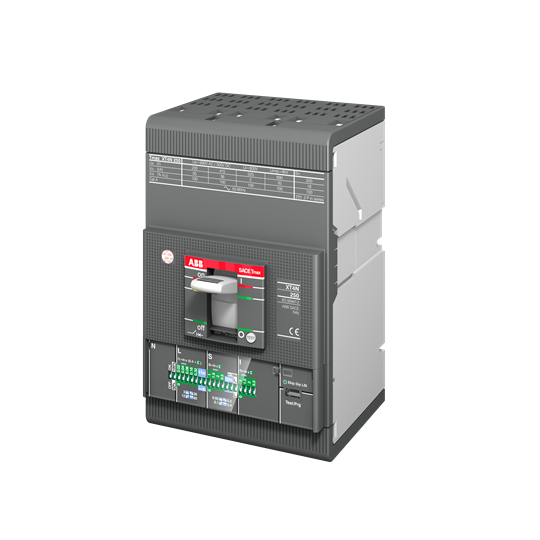

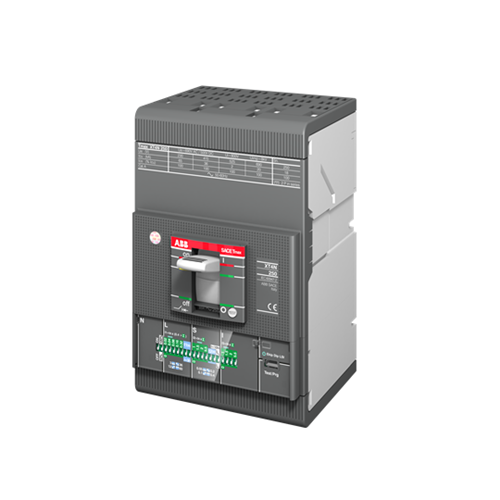

ABB 1SDA068126R1 Moulded Case Circuit Breaker 690VAC 250A 3-P 36kA Ekip Dip LSI Front For: XT4N

Product Code: 1SDA068126R1

  • MCCB with 250 A rated current
  • Supports up to 690 VAC voltage
  • Ekip Dip LSI trip unit for protection
  • Breaking capacity of 36 kA
  • Front connection with bolt terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT4N
Application
Power distribution systems, Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Instantaneous Protection Adjustment Range
1 to 10 × In
Long Time Overload Protection Adjustment Range
0.4 to 1 × In
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
Electronic
Frame Size Rating
XT4 (250 Frme)
Rated Current (In)
250 A
Rated Frequency
50 / 60 Hz
Trip Curve
Ekip Dip LS/I
Electrical Life
8000 cycles
No. of Poles
3P

Mechanical

Frame Size
XT4 (250A Frame)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
82.5 mm
Height
160 mm
Weight
2.5 kg
Width
105 mm

Environmental

Rated Surrounding Temperature Without Derating
40 °C
Pollution Degree
3
Storage Temperature
-40 to 70 °C
Operating Temperature
-25 to 70 °C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100 % of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
