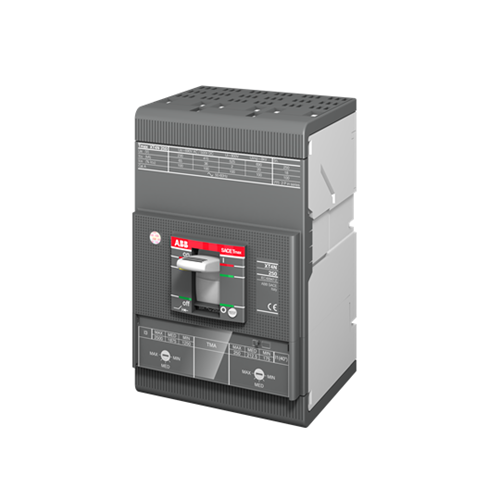

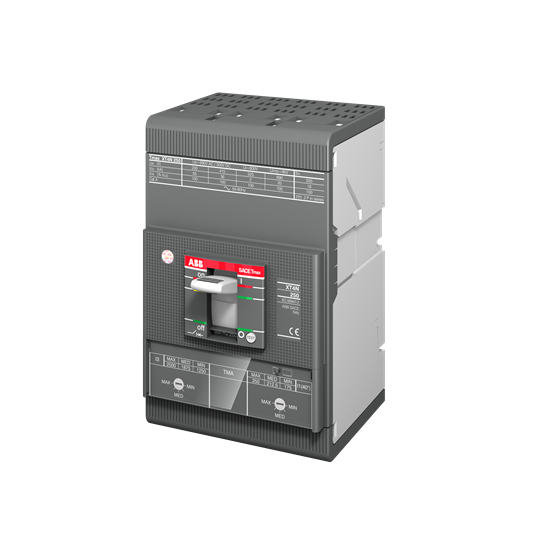

ABB 1SDA068112R1 Moulded Case Circuit Breaker 690/750VAC/VDC 10A 3-P 36kA 50-100A Front For: XT4N

Product Code: 1SDA068112R1

  • 10 A MCCB with 3 poles
  • High breaking capacity of 36 kA
  • Rated voltage up to 750 VAC/VDC
  • Front connection with bolt terminals
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
2 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
M
Rated Current (In)
10:00 AM
Rated Frequency
50/60 Hz
Trip Curve
MA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
160 mm
Weight
2500 g
Width
105 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10 kA
