Specifications

Product Type Automatic Circuit Breaker	Brand ABB	Series SACE Tmax XT
Application Power Distribution

AC Power Loss Per Pole at In 16.44 W	Long Time Overload Protection Adjustment Range 175 to 250 A	Max. Rated Operation AC Voltage (Ue) 690 V AC
Position of Connection for Main Current Circuit Front	Rated Insulation Voltage (Ui) 1000 V	Type of Protection Trip Unit TM
Rated Current (In) 125 A	Rated Frequency 50 to 60 Hz	Trip Curve TMA
Terminal Type Bolt	Electrical Life 8000 cycles	Mechanical Life 25000 cycles
No. of Poles 4P

Mechanical Connection

G1 / 2" EN 837

Depth 82.5 mm	Height 160 mm	Weight 3500 g
Width 140 mm

Pollution Degree

Standards and Approvals

IEC 60947-2

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz 100 % of Icu	Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz 36 kA	Rated Service Short Circuit Breaking Capacity (Ics) 690V AC 10 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC 10 kA	Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC 10 kA	Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC 10 kA

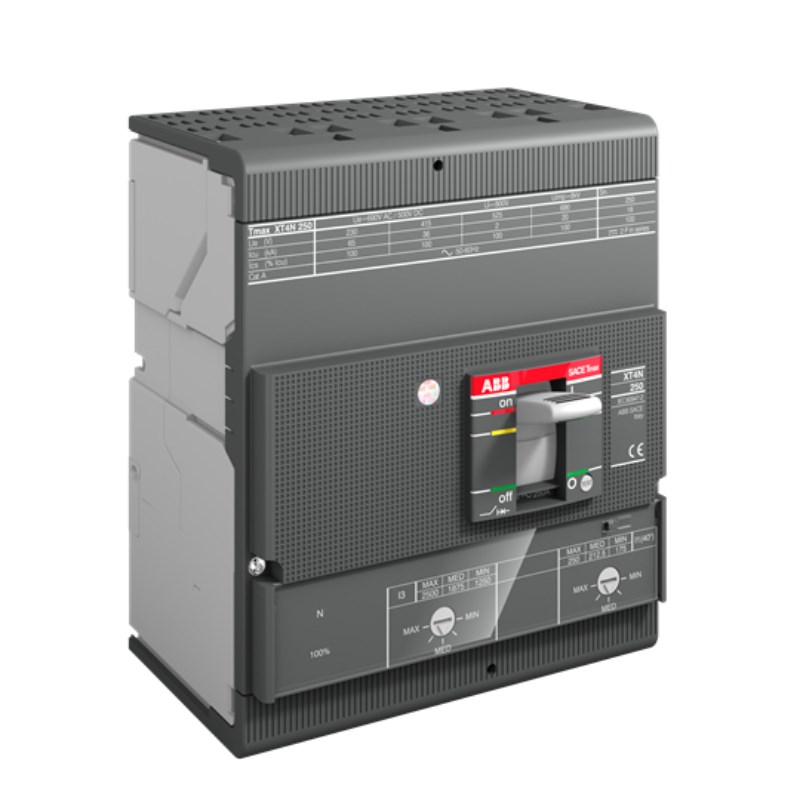

ABB 1SDA068106R1 Moulded Case Circuit Breaker 690/750VAC/VDC 250A 4-P 36kA TMA 1250-2500A Front For: T4
