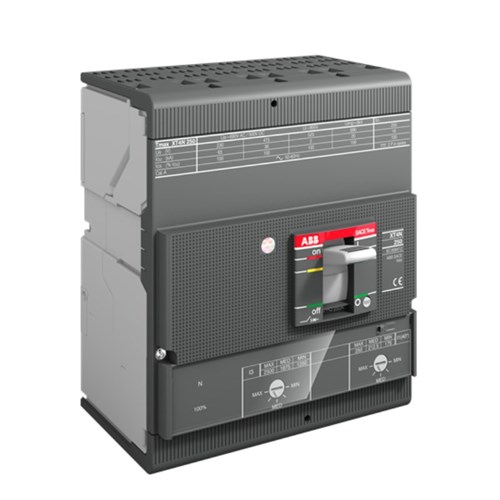

ABB 1SDA068105R1 Moulded Case Circuit Breaker 690/750VAC/VDC 225A 4-P 36kA TMA 1125-2250A Front For: T4

Product Code: 1SDA068105R1

  • Rated current: 225 A, breaking capacity: 36 kA
  • Rated voltage: 690/750 VAC/VDC, impulse withstand: 8 kV
  • Front connection with bolt terminals, IP20 protection
  • TMA trip unit and TM release for reliable operation
  • Compliant with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
16.4 W
Long Time Overload Protection Adjustment Range
157.5 to 225 A
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
TM
Rated Current (In)
250 A
Rated Frequency
50 / 60 Hz
Trip Curve
TMA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
82.5 mm
Height
160 mm
Weight
3500 g
Width
140 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
10 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
10 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10 kA
