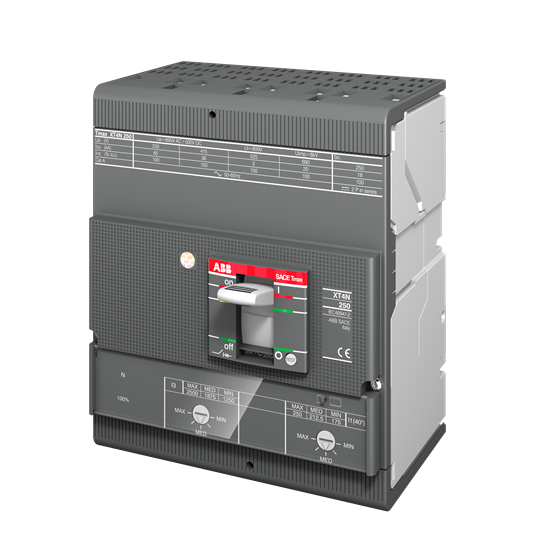

ABB 1SDA068101R1 Moulded Case Circuit Breaker 690/750VAC/VDC 100A 4-P 36kA TMA 500-1000A Front For: XT4N

Product Code: 1SDA068101R1

  • MCCB with 100 A rated current
  • Handles up to 690/750 VAC/VDC
  • Breaking capacity of 36 kA
  • Bolt terminal connection, front type
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
6.24W
Long Time Overload Protection Adjustment Range
70 to 100 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Rated Current (In)
100A
Rated Frequency
50/60Hz
Trip Curve
TMA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
3.5kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA
