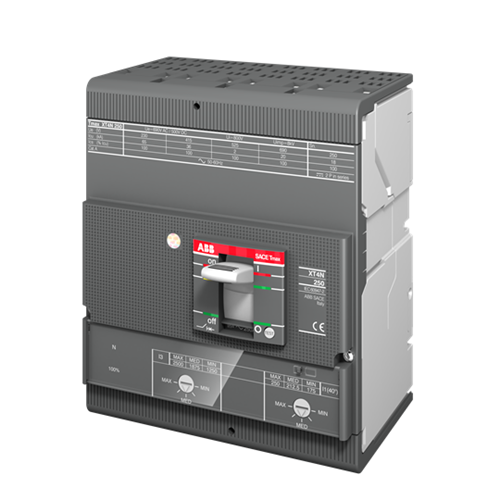

ABB 1SDA068100R1 Moulded Case Circuit Breaker 690/750VAC/VDC 80A 4-P 36kA TMA 400-800A Front For: XT4N

Product Code: 1SDA068100R1

  • MCCB with 80 A rated current
  • High breaking capacity of 36 kA
  • Rated voltage: 690/750 VAC/VDC
  • Front connection, bolt terminals
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
5.52W
Long Time Overload Protection Adjustment Range
56 to 80 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
TM
Rated Current (In)
80A
Rated Frequency
50/60Hz
Trip Curve
TMA
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Dimensions & Physical Data

Depth
82.5mm
Height
160mm
Weight
3.5kg
Width
140mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
10kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA

Documents

IPD Product Catalogue V17
