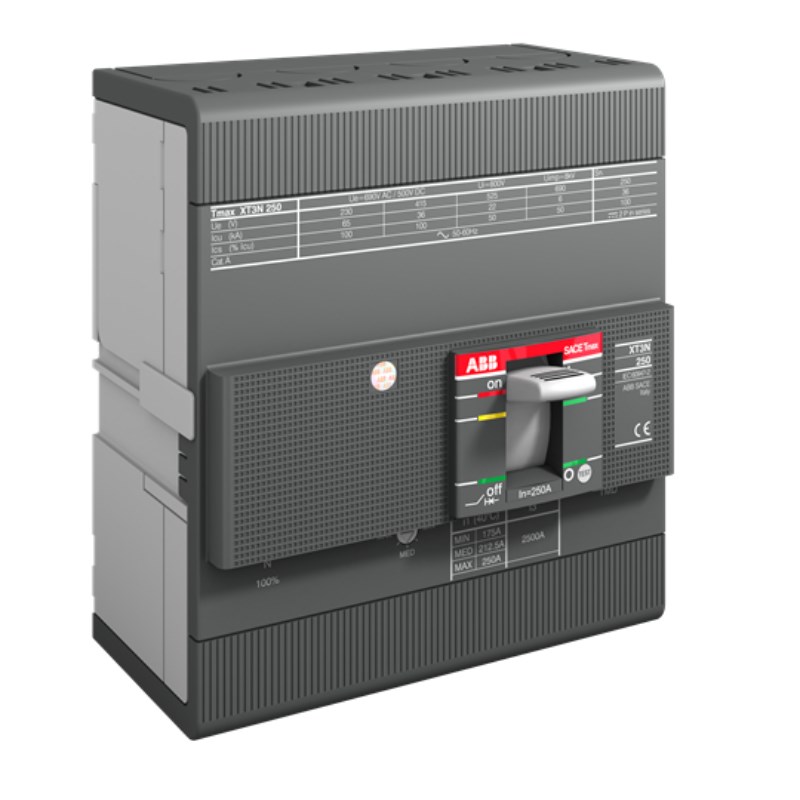

ABB 1SDA068066R1 Moulded Case Circuit Breaker 690/500VAC/VDC 250A 4-P 36kA TMD 2500A Front

Product Code: 1SDA068066R1

  • MCCB with 250 A rated current
  • Handles up to 36 kA breaking capacity
  • Front connection, bolt terminals
  • IP20 protection, 4 poles design
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
17.8 W
Long Time Overload Protection Adjustment Range
175 to 250 A
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800 V
Type of Protection Trip Unit
TM
Rated Current (In)
125 A
Rated Frequency
50 / 60 Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
4P

Mechanical

Mechanical Connection
G1 / 2" EN 837

Dimensions & Physical Data

Depth
70 mm
Height
150 mm
Weight
2100 g
Width
140 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
3 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
5 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
3 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
5 kA
