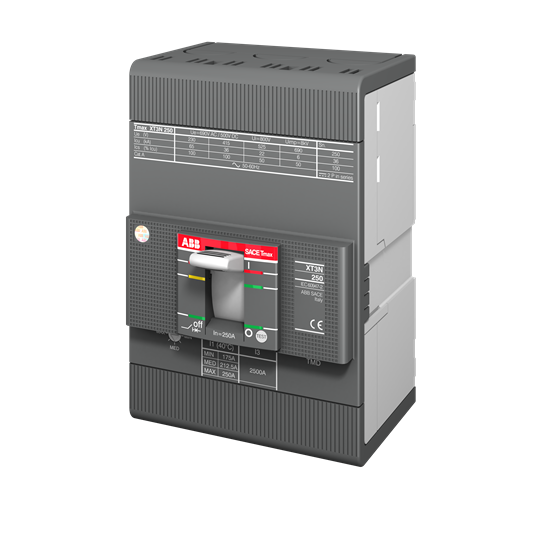

ABB 1SDA068058R1 Moulded Case Circuit Breaker 690/500VAC/VDC 200A 3-P 36kA TMD 2000A Front For: XT3N

Product Code: 1SDA068058R1

  • 200 A MCCB with 3 poles
  • Breaking capacity of 36 kA
  • Rated voltage: 690/500 VAC/VDC
  • IP20 protection, front connection
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
XT3N
Application
Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Electrical

Long Time Overload Protection Adjustment Range
0.7...1xIn
Max. Rated Operation AC Voltage (Ue)
690V
Type of Protection Trip Unit
TMD
Frame Size Rating
XT3 (250 frme)
Rated Current (In)
200A
Rated Frequency
50Hz to 60Hz
Trip Curve
Adj: Thermal, Fixed: Magnetic
Electrical Life
8000
No. of Poles
3P

Mechanical

Frame Size
XT3 (250 frme)
Housing Material
Thermoset insulating material (moulded case)

Dimensions & Physical Data

Depth
70mm
Height
150mm
Weight
3.24kg
Width
105mm

Environmental

Rated Surrounding Temperature Without Derating
40°C
Pollution Degree
3
Storage Temperature
-40°C and +70°C
Operating Temperature
-25°C and +70°C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100% of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36kA
