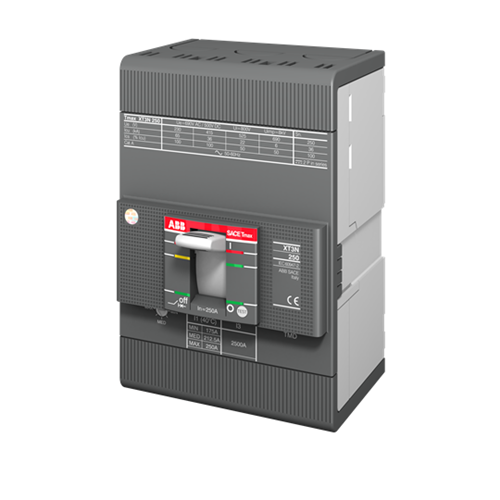

ABB 1SDA068057R1 Moulded Case Circuit Breaker 690/500VAC/VDC 160A 3-P 36kA TMD 1600A Front For: XT3N

Product Code: 1SDA068057R1

  • 160 A rated current with TMD trip unit
  • High breaking capacity of 36 kA
  • Front connection with bolt terminals
  • IP20 protection, suitable for XT3N
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
MCCB
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
7.9 W
Long Time Overload Protection Adjustment Range
112 to 160 A
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800 V
Type of Protection Trip Unit
TM
Rated Current (In)
160 A
Rated Frequency
50 to 60 Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Mechanical

Frame Size
XT3 (250A Frame)

Dimensions & Physical Data

Depth
70 mm
Height
150 mm
Weight
1.7 kg
Width
105 mm

Environmental

Pollution Degree
3

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz
100 % of Icu
Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
36 kA
Rated Service Short Circuit Breaking Capacity (Ics) 690V AC
3 kA
Rated Ultimate Short Circuit Breaking Capacity (Icu) 690V AC
5 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
3 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
5 kA
