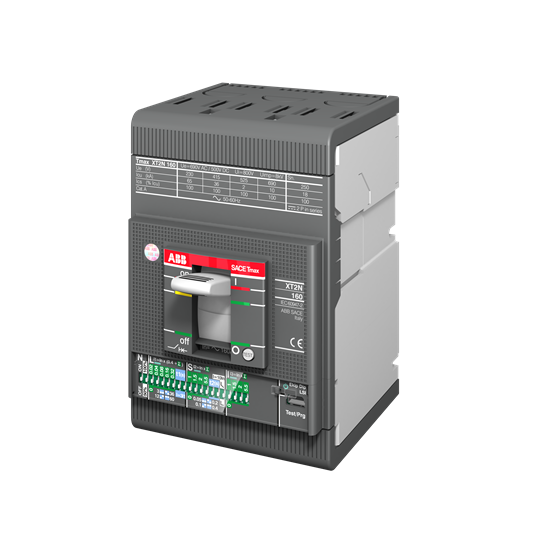

ABB 1SDA067917R1 Moulded Case Circuit Breaker 690VAC 100A 3-P 18kA Ekip Dip LSI Front For: XT2L

Product Code: 1SDA067917R1

  • MCCB with 100 A rated current
  • Withstands impulse voltage up to 8 kV
  • Rated insulation voltage of 1000 V
  • Breaking capacity of 18 kA
  • Compact width of 90 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
4.2W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V
Type of Protection Trip Unit
EL
Rated Current (In)
100A
Rated Frequency
50/60Hz
Trip Curve
Ekip LS/I
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.4kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
120kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
18kA
