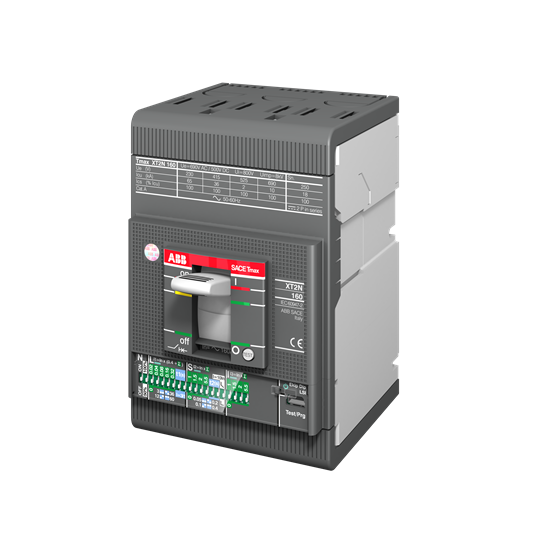

ABB 1SDA067871R1 Moulded Case Circuit Breaker 690VAC 160A 3-P 15kA Ekip Dip LSI Front For: XT2H

Product Code: 1SDA067871R1

  • Handles up to 160 A rated current
  • Withstands impulse voltages of 8 kV
  • Ekip Dip LSI trip unit for reliable protection
  • Compact width of 90 mm, IP20 protection
  • Compatible with XT2H systems
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
10.8W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V AC
Type of Protection Trip Unit
EL
Rated Current (In)
160A
Rated Frequency
50/60Hz
Trip Curve
Ekip C Dip LSI
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.2kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
15kA
