Specifications

Product Type MCCB	Brand ABB	Series XT2H
Application Power distribution systems , Motor protection applications, Generator protection and control systems, Commercial & industrial facilities

Instantaneous Protection Adjustment Range 1...10xIn	Long Time Overload Protection Adjustment Range 0.4...1xIn	Max. Rated Operation AC Voltage (Ue) 690V
Type of Protection Trip Unit Electronic	Frame Size Rating XT2 (160 frme)	Rated Current (In) 160A
Rated Frequency 50Hz to 60Hz	Trip Curve Ekip Dip LS/I	Electrical Life 8000
No. of Poles 3P

Frame Size

XT2 (160 frme)

Housing Material

Thermoset insulating material (moulded case)

Depth 82.5mm	Height 130mm	Weight 2.21kg
Width 90mm

Rated Surrounding Temperature Without Derating 40°C	Pollution Degree 3	Storage Temperature -40°C and +70°C
Operating Temperature -25°C and +70°C	IP Rating IP20

Standards and Approvals

IEC 60947-2

Rated Service Short Circuit Breaking Capacity (Ics) at 400 V, 50 Hz

100% of Icu

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz

70kA

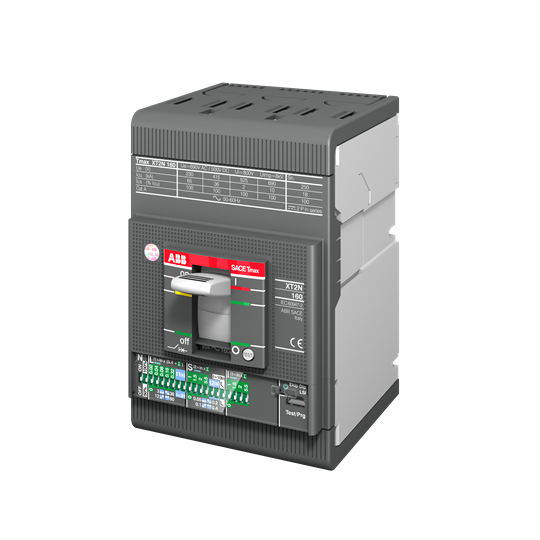

ABB 1SDA067861R1 Moulded Case Circuit Breaker 690VAC/VDC 160A 3-P 70kA Ekip Dip LSI Front For: XT2H
