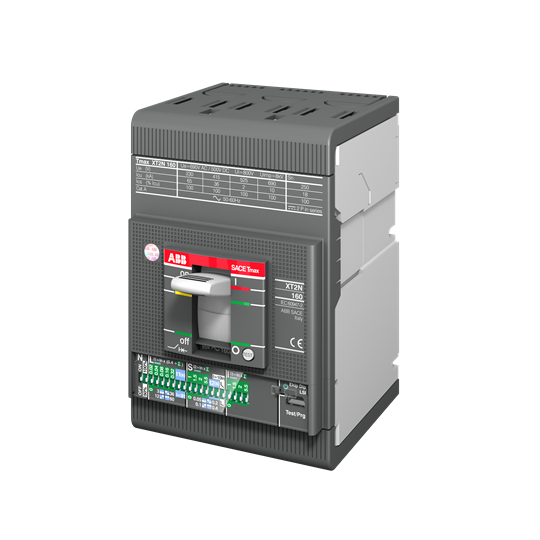

ABB 1SDA067857R1 Moulded Case Circuit Breaker 1000V 10A 3-P 15kA Ekip Dip LSI Front For: XT2H

Product Code: 1SDA067857R1

  • MCCB with 10 A rated current
  • Handles up to 1000 V and 8 kV impulse
  • Ekip Dip LSI trip unit for precise control
  • Breaking capacity of 15 kA, IP20 protection
  • Bolt terminal connection, front access
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
0.1 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
EL
Rated Current (In)
10:00 AM
Rated Frequency
50/60 Hz
Trip Curve
Ekip Dip LS/I
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
130 mm
Weight
1120 g
Width
90 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
15 kA

Documents

IPD Product Catalogue V17
