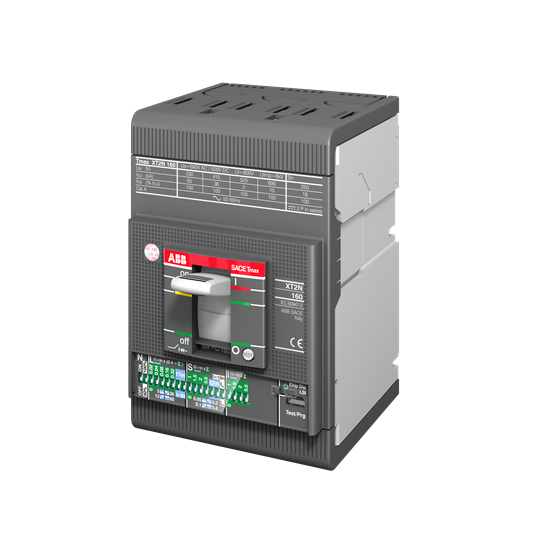

ABB 1SDA067819R1 Moulded Case Circuit Breaker 690VAC/VDC 160A 3-P 12kA Ekip Dip LSI Front For: XT2S

Product Code: 1SDA067819R1

  • Rated current of 160 A for robust performance
  • Handles up to 690 VAC/VDC voltage
  • Ekip Dip LSI trip unit ensures precise protection
  • IP20 rated for solid object protection
  • Compact width of 90 mm saves space
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
10.8W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V AC
Type of Protection Trip Unit
EL
Rated Current (In)
160A
Rated Frequency
50/60Hz
Trip Curve
Ekip C Dip LSIG
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.2kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
12kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
12kA
