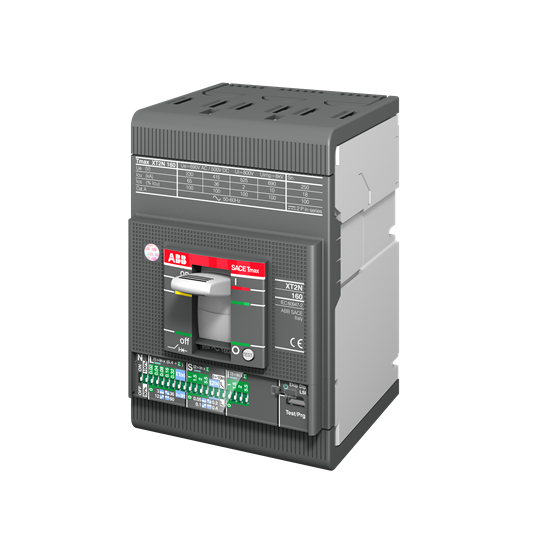

ABB 1SDA067818R1 Moulded Case Circuit Breaker 690VAC/VDC 100A 3-P 12kA Ekip Dip LSI Front For: XT2S

Product Code: 1SDA067818R1

  • Rated for 100 A current capacity
  • Handles up to 690 VAC/VDC
  • Breaking capacity of 12 kA
  • Compact width of 90 mm
  • Compliant with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
4.2W
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000V AC
Type of Protection Trip Unit
EL
Rated Current (In)
100A
Rated Frequency
50/60Hz
Trip Curve
Ekip C Dip LSIG
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
82.5mm
Height
130mm
Weight
1.2kg
Width
90mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
12kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
12kA
