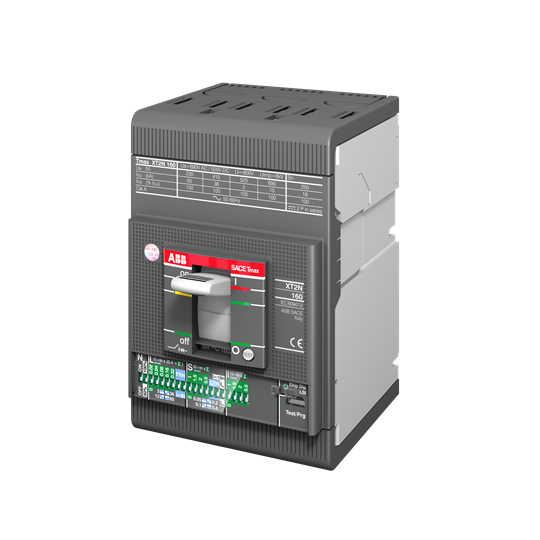

ABB 1SDA067815R1 Moulded Case Circuit Breaker 690VAC/VDC 10A 3-P 12kA Ekip Dip LSI Front For: XT2S

Product Code: 1SDA067815R1

  • MCCB with 10 A rated current
  • Withstands impulse voltage up to 8 kV
  • Ekip Dip LSI trip unit for reliability
  • Breaking capacity of 12 kA, IP20 protection
  • Front connection, bolt terminal type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
0.10 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V AC
Type of Protection Trip Unit
EL
Rated Current (In)
10:00 AM
Rated Frequency
50/60 Hz
Trip Curve
Ekip C Dip LSIG
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
130 mm
Weight
1200 g
Width
90 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
12 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
12 kA
