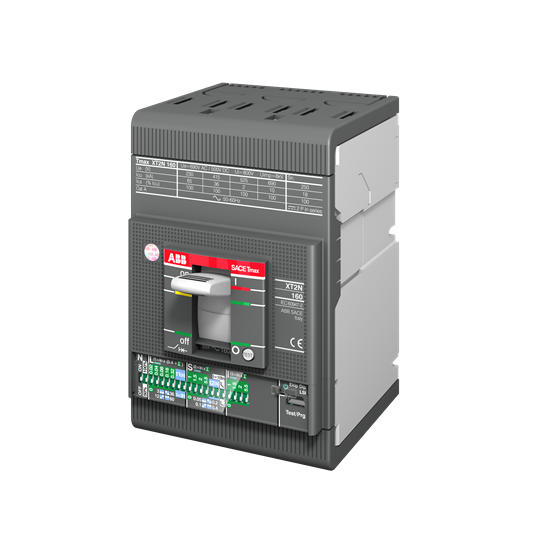

ABB 1SDA067800R1 Moulded Case Circuit Breaker 690VAC 10A 3-P 50kA Ekip Dip LSI Front For: XT2S

Product Code: 1SDA067800R1

  • 10 A MCCB with 50 kA breaking capacity
  • Rated Voltage: 690 VAC, Insulation: 1000 V
  • Ekip Dip LSI trip unit for reliable performance
  • Front connection with bolt terminals
  • Complies with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
0.1 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
EL
Rated Current (In)
10:00 AM
Rated Frequency
50/60 Hz
Trip Curve
Ekip Dip LS/I
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
130 mm
Weight
1400 g
Width
90 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
50 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
12 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
12 kA
