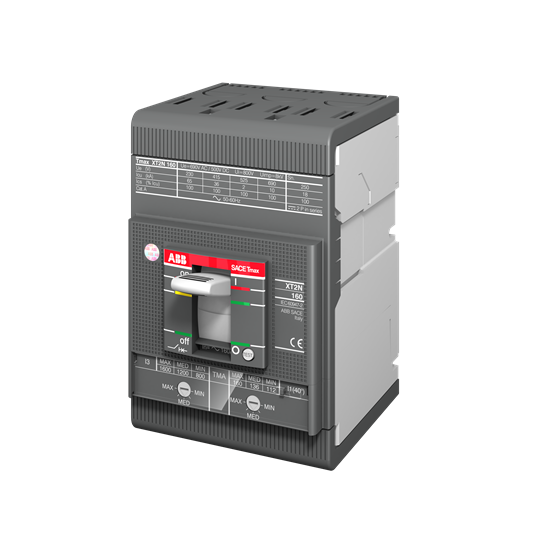

ABB 1SDA067771R1 Moulded Case Circuit Breaker 690/500VAC/VDC 2A 3-P 70kA 28A Front For: XT2H

Product Code: 1SDA067771R1

  • MCCB with 3 poles for versatile use
  • Handles up to 2 A current reliably
  • Rated voltage of 690/500 VAC/VDC
  • High breaking capacity of 70 kA
  • Compliant with IEC60947-2 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Motor Protection

Electrical

AC Power Loss Per Pole at In
2.38 W
Max. Rated Operation AC Voltage (Ue)
690 V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
1000 V
Type of Protection Trip Unit
M
Rated Current (In)
2:00 AM
Rated Frequency
50/60 Hz
Trip Curve
MF
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3

Dimensions & Physical Data

Depth
82.5 mm
Height
130 mm
Weight
1100 g
Width
90 mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70 kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
15 kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
15 kA

Documents

IPD Product Catalogue V17
