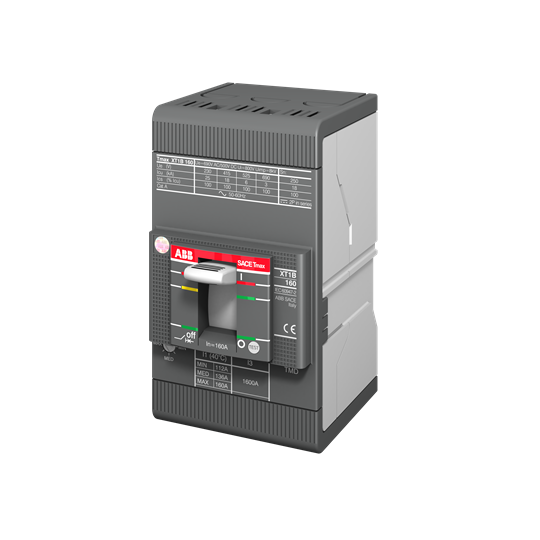

ABB 1SDA067450R1 Moulded Case Circuit Breaker 690/500VAC/VDC 63A 3-P 70kA TMD 630A Front For: XT1H

Product Code: 1SDA067450R1

  • Rated current of 63 A for reliable performance
  • High breaking capacity of 70 kA
  • Compact width of 76.2 mm saves space
  • Complies with IEC60947-2 standards
  • IP20 protection for safe operation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Automatic Circuit Breaker
Brand
ABB
Series
SACE Tmax XT
Application
Power Distribution

Electrical

AC Power Loss Per Pole at In
4.3W
Long Time Overload Protection Adjustment Range
44.1 to 63 A
Max. Rated Operation AC Voltage (Ue)
690V AC
Position of Connection for Main Current Circuit
Front
Rated Insulation Voltage (Ui)
800V
Type of Protection Trip Unit
TM
Rated Current (In)
63A
Rated Frequency
50/60Hz
Trip Curve
TMD
Terminal Type
Bolt
Electrical Life
8000 cycles
Mechanical Life
25000 cycles
No. of Poles
3P

Dimensions & Physical Data

Depth
70mm
Height
130mm
Weight
1.1kg
Width
76.2mm

Safety, Standards & Compliance

Standards and Approvals
IEC 60947-2

Other

Rated Ultimate Short Circuit Breaking Capacity (Icu) at 415 V, 50 Hz
70kA
Rated Service Short Circuit Breaking Capacity, (Ics) 690V AC
5kA
Rated Ultimate Short Circuit Breaking Capacity, (Icu) 690V AC
10kA
